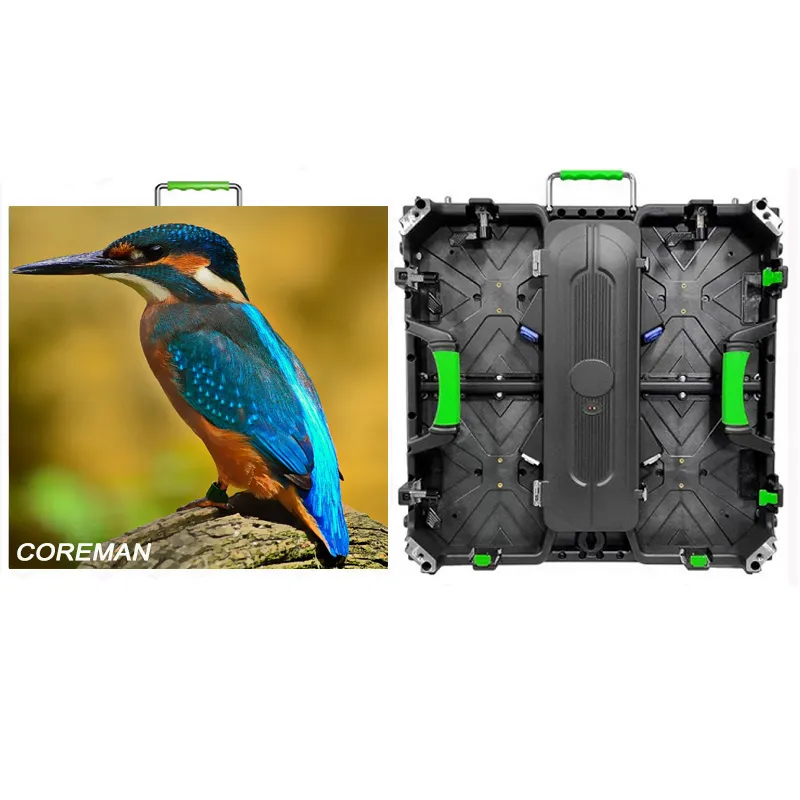

CHK Rental LED Screen
rental LED screenin includes many aesthetic elements,With the high-strength die-casting aluminum material, and has better visual performance with high-definition pixel.
Perfect Cabinet Design

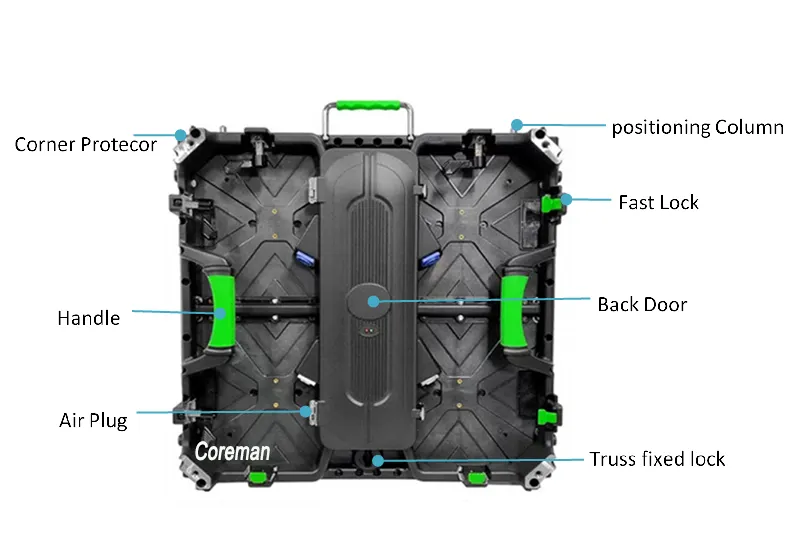

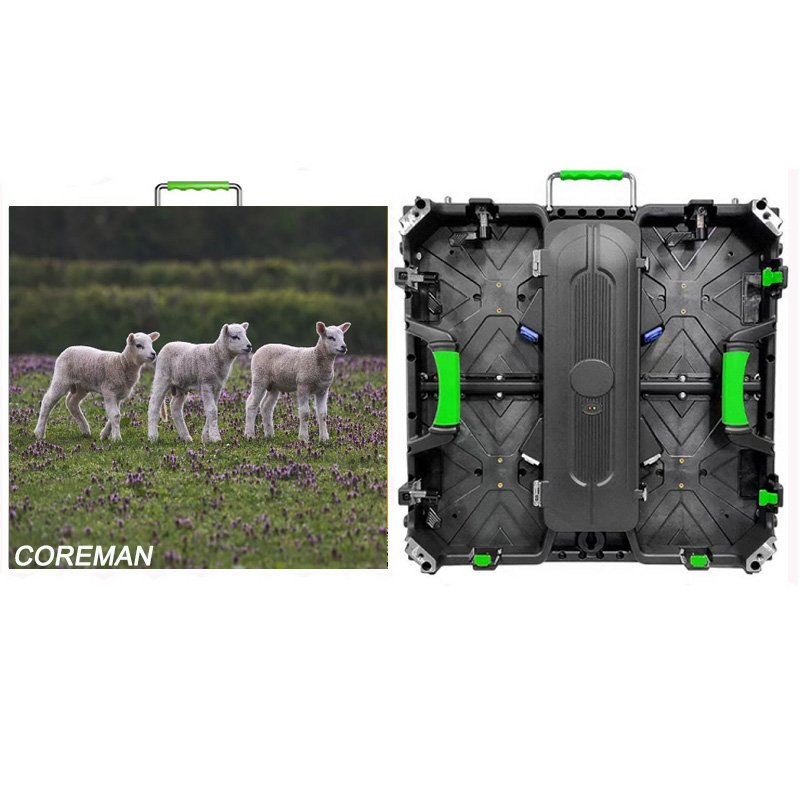

Cabinet details: Strong handles, better fixing slots, fast locks, corner protector, A High Cost-effective CHK Model

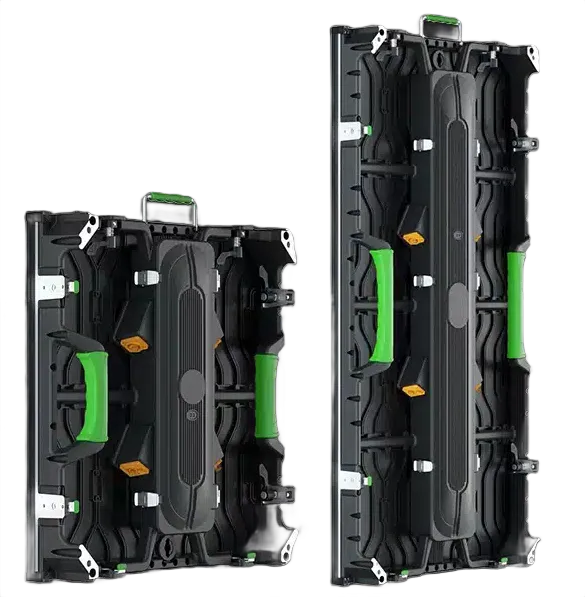

Cabinet size options

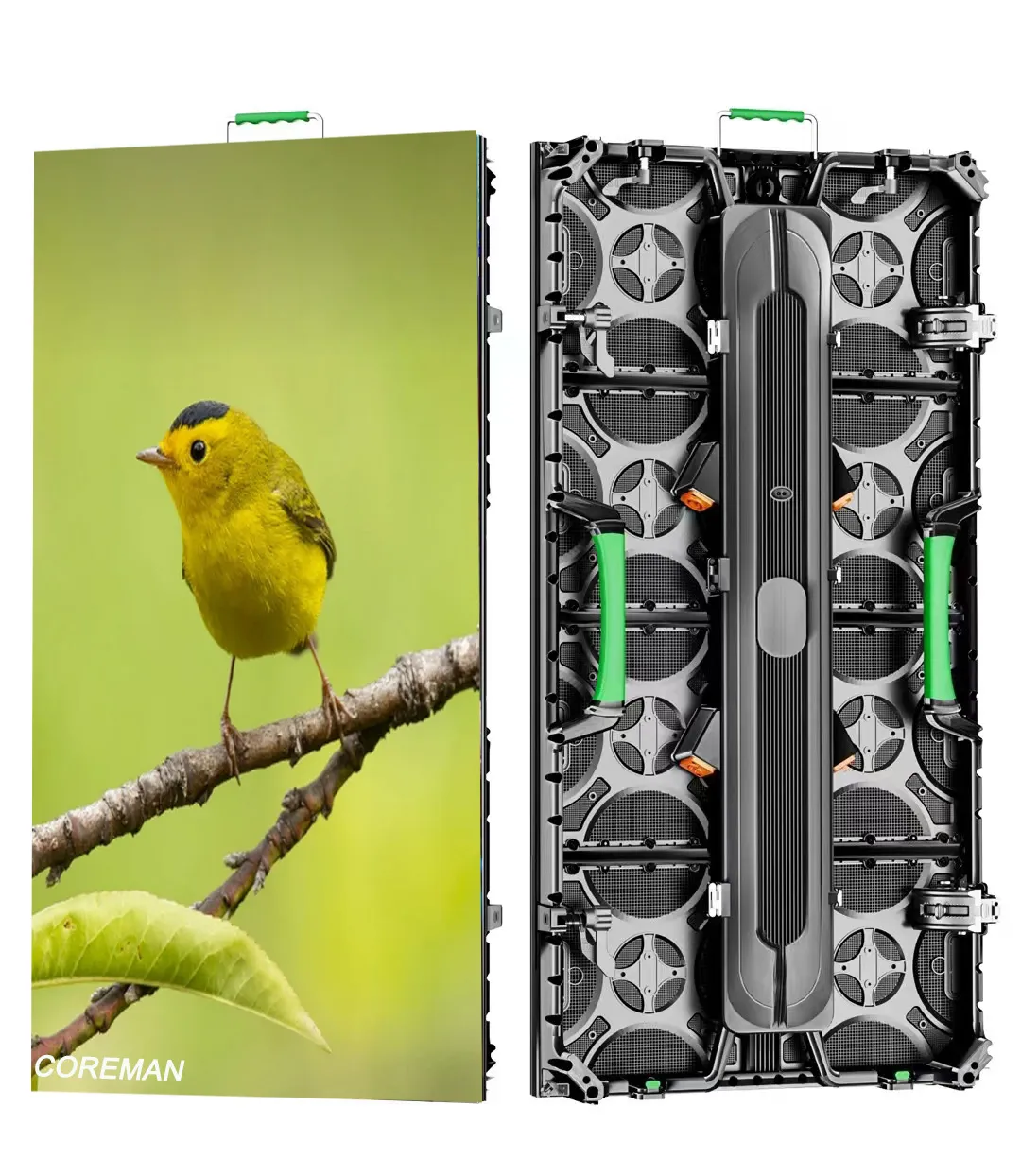

500X500mm /500x1000mm

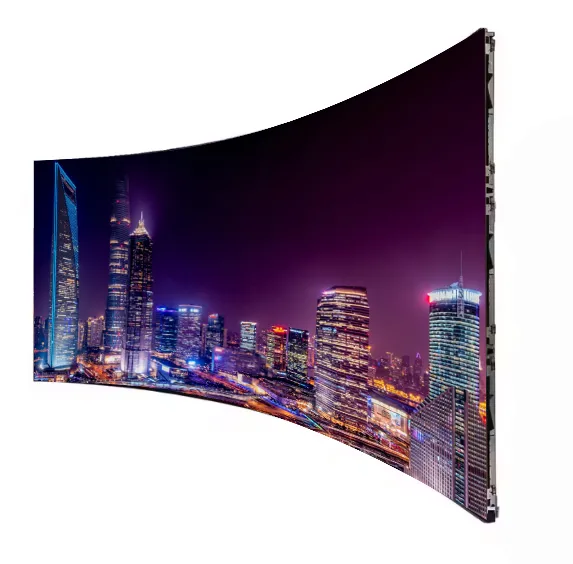

Curve Installation options

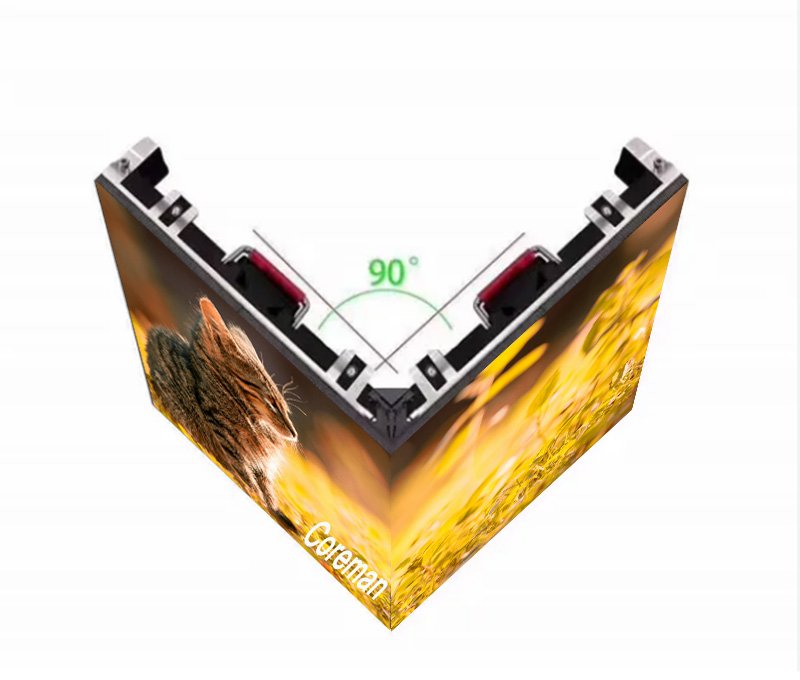

CHK series LED screen designed for curved model . The degree range between -10° and 15°, allowing for both convex and concave.Also used for 90 degree cube.

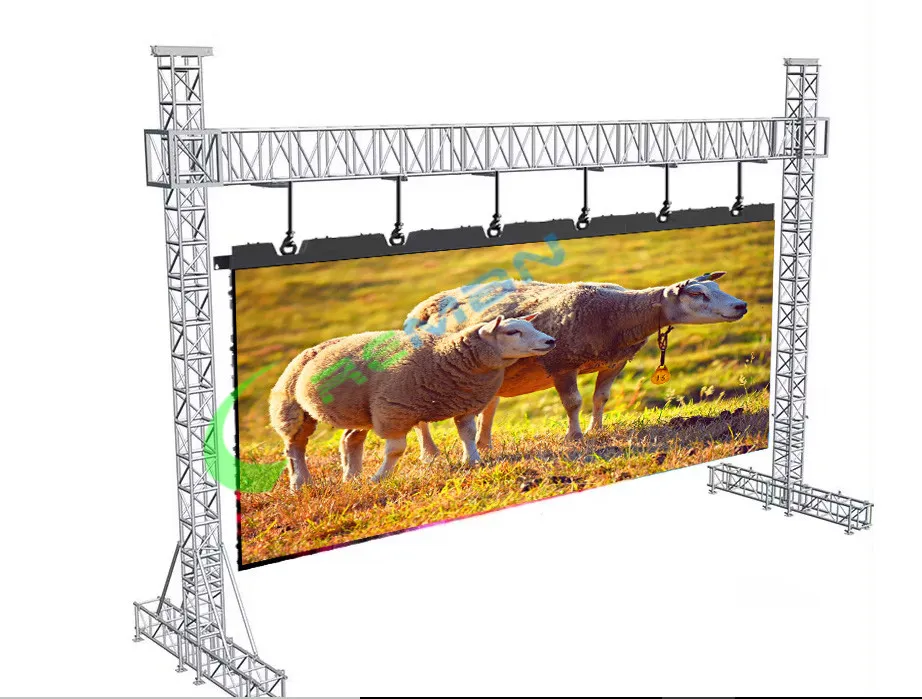

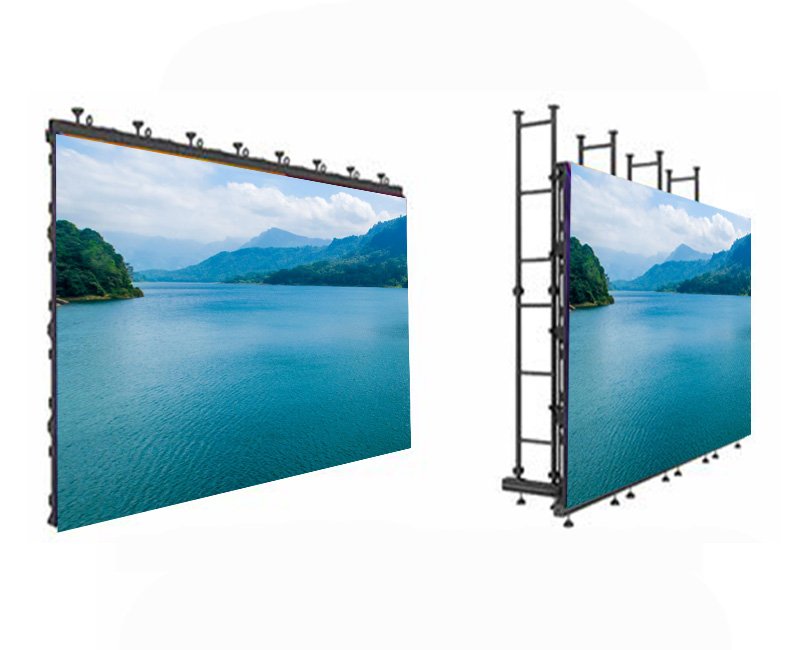

Led video wall Installation

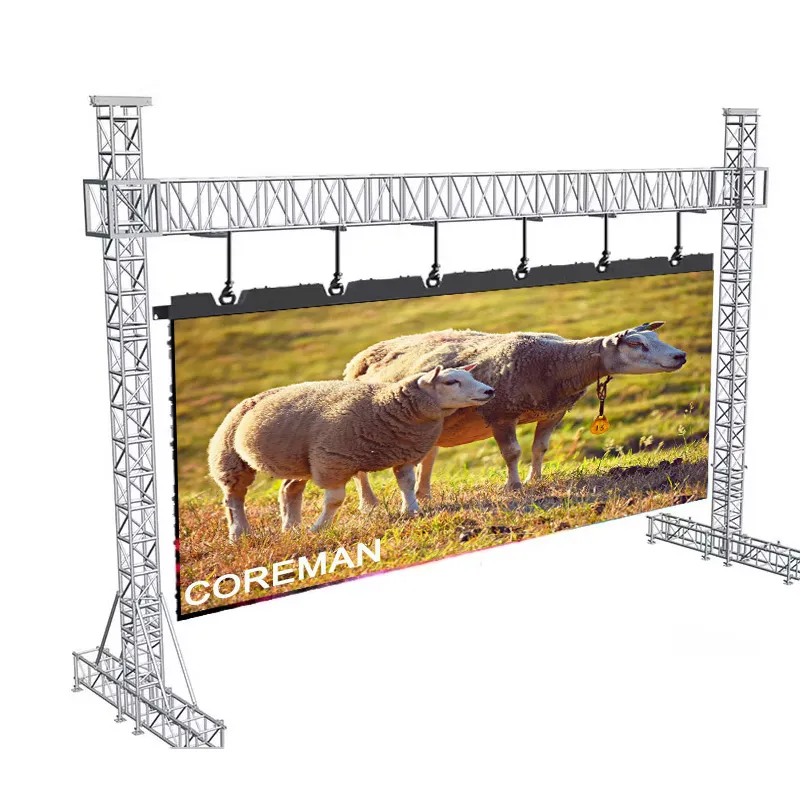

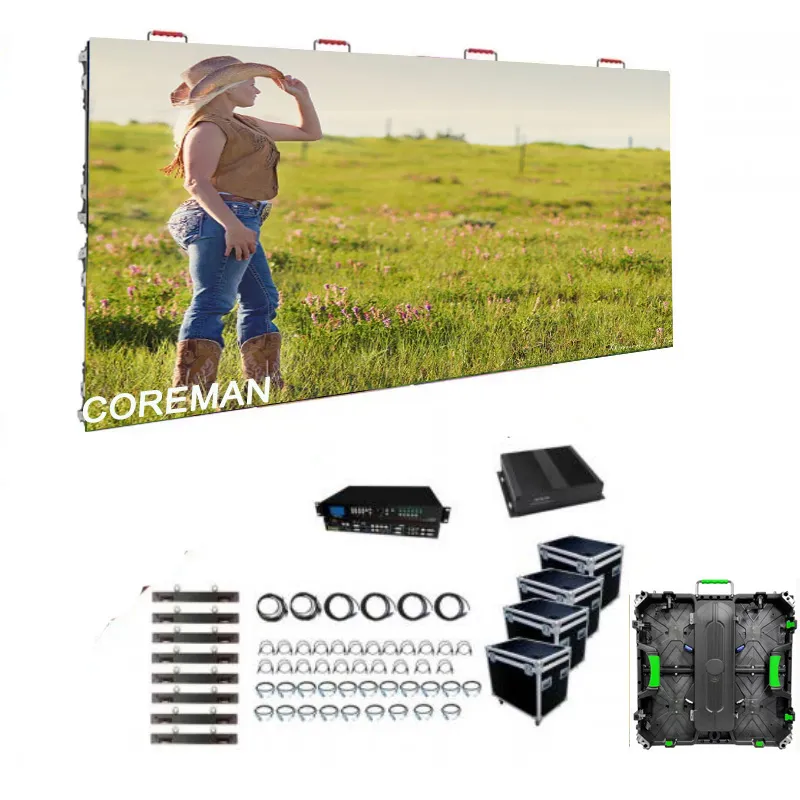

Ground support / Backdrop /truss hanging /Movable Flight case
Testing
Factory Tesing more than 96hours at least

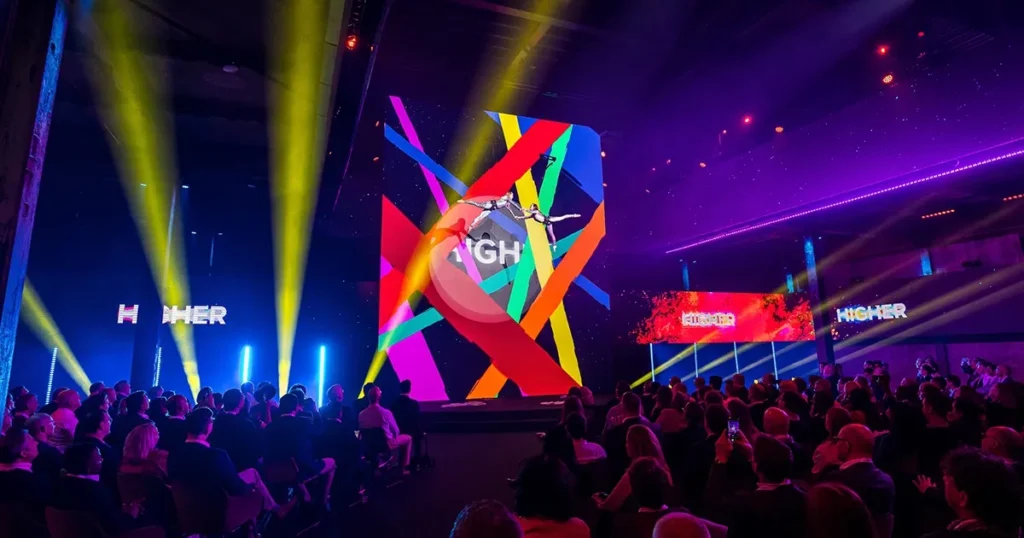

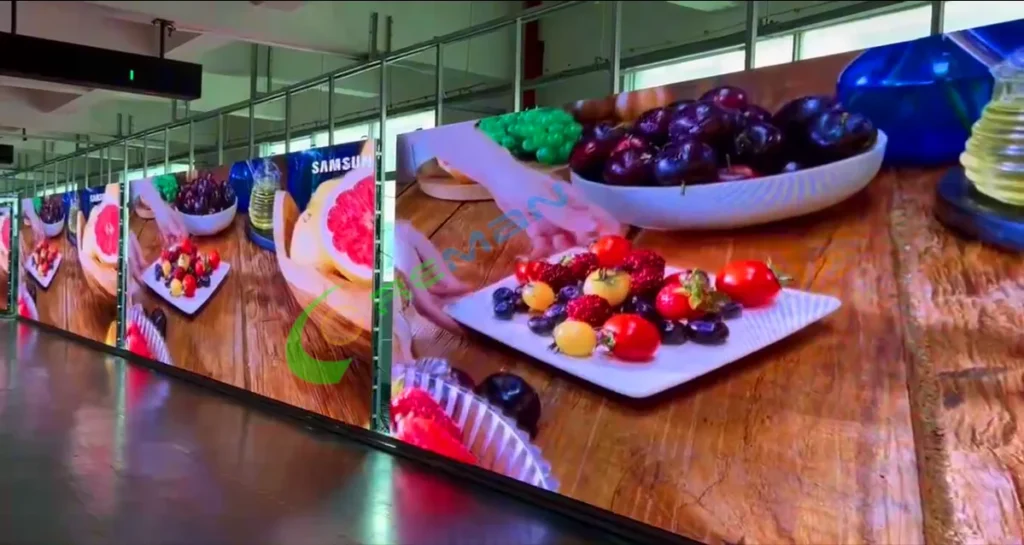

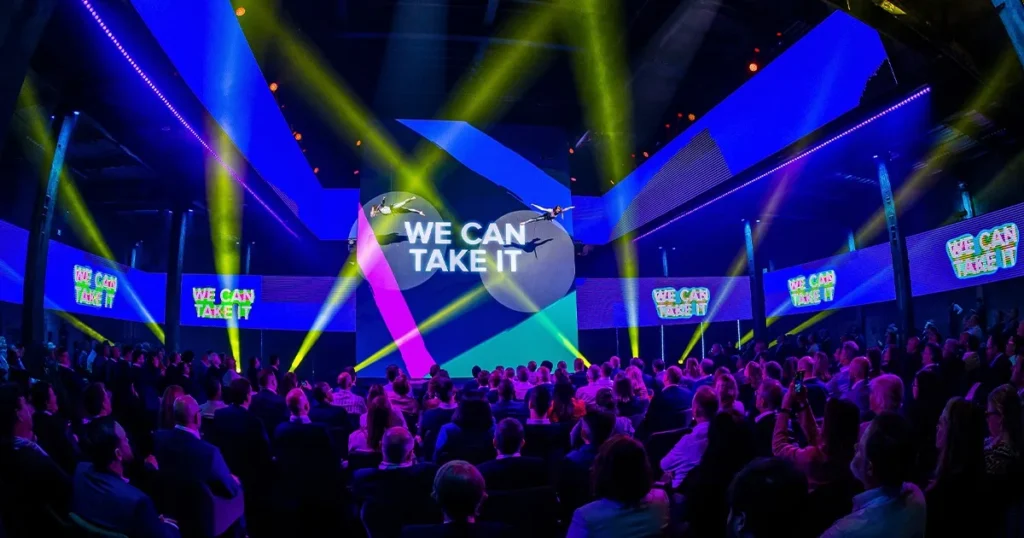

Applications cases
Activity; Stages; Advertisements; Sports Events.Music concert,Church,School,trade fair,etc.
Specification
Outdoor 500x500mm Rental LED screen
| Pixel Pitch (mm) | P2.6 | P2.97 | P3.91 | P3.91 | P4.81 |
|---|---|---|---|---|---|
| Model | 2.6mm | 2.97 | P3.91-16S | P3.91-8S | P4.81 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921(black) |
| Density (Pixels/㎡) | 147,928 | 112,896 | 65,536 | 65,536 | 43264 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 64×64 | 52X52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/24 | 1/21 | 1/16 | 1/8 | 1/13 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Brightness (CD/㎡) | 4500 | 4500 | 4800 | 6000 | 5000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 720 | 720 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 240 | 240 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
Indoor 500x500mm Rental LED screen
| Pixel Pitch (mm) | P1.56(GOB) | P1.95(GOB) | P2.5(GOB) | P2.6(GOB) | P2.97 | P3.91 |
|---|---|---|---|---|---|---|
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 160 | 192 |
| Brightness (CD/㎡) | 750 | 800 | 800 | 750 | 800 | 700 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 7 | 7 | 7 | 7 | 7 | 7 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 160,000 | 147,928 | 112,896 | 65,536 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 480 | 576 |
| Model | EA500H9-iP1.56 | EA500H9-iP1.95 | EA500H9-iP2.5 | EA500H9-iP2.6 | EA500H9-iP2.97 | EA500H9-iP3.91 |
| Module Resolution (Pixel) | 160×160 | 128×128 | 100×100 | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 | 140 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
FAQ
Rental LED screen are a high-quality temporary visual solution for multiple applications such as events, exhibitions, stages, concerts and conferences. Compared with fixed installation displays, rental LED screens are lighter, easier to install and remove, and come with a sturdy locking system to ensure quick assembly. They still provide vivid visuals and stable performance in dynamic environments. For businesses in the event and stage industries, rental LED displays are a flexible, reusable and cost-effective option that can deliver outstanding visuals without compromising quality and reliability.
Rental LED displays are flexible and visually stunning, They are Rental short-term use and affordable. The features are seamless splicing, high brightness and refresh rates 3840HZ, This makes them ideal for dynamic environments and suitable for event planning and AV rental companies.
Rental led screen are suitable for indoor and outdoor events, For example concerts, fashion shows, conferences, conferences, weddings, sports events and church services,etc. They can provide perfect visual effects and mainly used on the stage backgrounds and large public display screen rentals. Cabinet size 500X500,500X1000mm
When the customer select a mobile led screen rental, you should consider viewing distance, pixel pitch, environment (indoor or outdoor), screen size, and mounting method,hanging,or ground support. Outdoors require high brightness and waterproof panels.Indoors, resolution and color accuracy are important. Our Coreman team can help.Please send inquiry now
Our rental LED video wall are built with a high quality materials,the life span is more than 100,000hours. Maintenance is easy with front or rear access designs. We provide full technical support, spare parts, and training to ensure long-term use.If you have any technical questions, our engineers can help you directly,no need translator.
We are a professional LED display manufacturer， Customizable rental LED solutions, supporting the adjustment of screen size, pixel pitch, frame structure and control system on different events . Including full customization services from LED modules to LED cabinets
